Nginx

Overview​

In this guide we will be using Nginx as a reverse proxy to access the Remnawave panel. We will point a domain name to our server, issue a SSL certificate and configure Nginx.

warning

You need to have a registered domain name to continue.

Point domain to your server​

Check your server's IP address. It is better to use a static IPv4 address.

Now, you need to point your domain name to this IP address.

For example, it will be my-super-panel.com -> 193.122.122.122.

There are two ways to do this:

  1. Use a DNS provider (e.g. Cloudflare, Google Cloud, etc.)
  2. Use a registrar (e.g. Namecheap, etc.)

DNS provider​

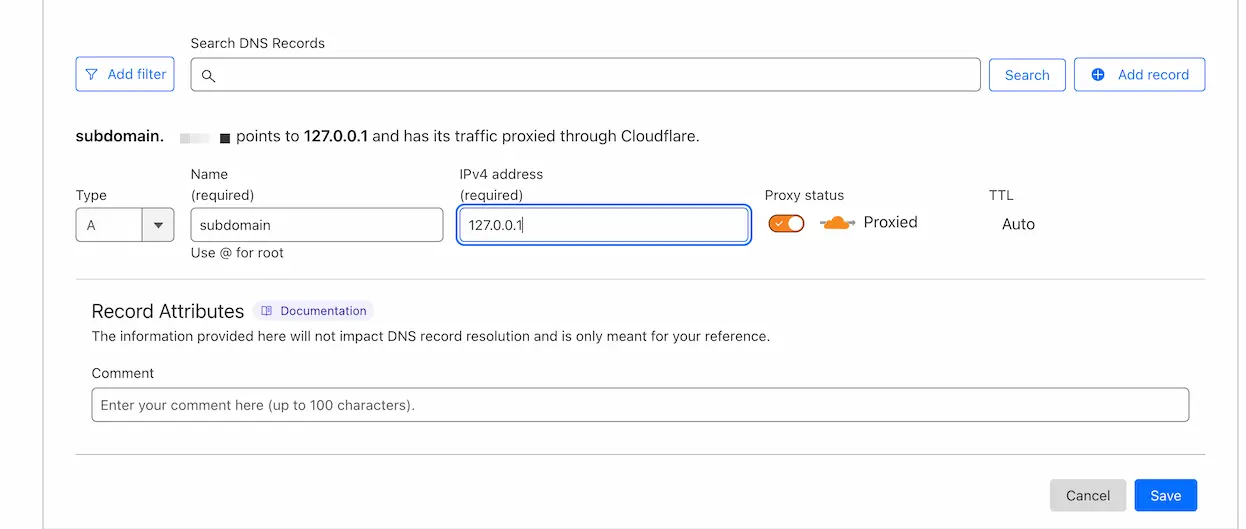

If you are using Cloudflare, you need to add a A/AAAA record (for IPv4 and IPv6 respectively) to your DNS records.

Log in to your Cloudflare account here and select the desired domain.

On the left side of the page, click on DNS and then click on Records. Click on Create record.
Set the Type to A and the Name to @.

info

If you want to use subdomains, you should enter the subdomain name (e.g. panel) in the Name field.

Enter your server's IP address in the IPv4 address field. and click on Save.

Now you need to wait a while for the DNS records to be updated.

info

There is a big difference between yellow cloud (domain is proxied by Cloudflare) and grey cloud (domain is not proxied by Cloudflare) in the Cloudflare control panel.

If Cloudflare works fine in your region, it is better to proxy the domain through Cloudflare. (Yellow cloud)

static

Some DNS providers have a different interface, but the overall process is the same.

Issue an SSL certificate​

Now, you need to issue an SSL certificate. The most easy way is to use acme.sh.

warning

This guide will cover only issuing SSL certificate for the domain of the panel.

Install dependencies​

sudo apt-get install cron socat

Install acme.sh​

info

You can use any email address to issue the certificate, but it is recommended to use a valid one.

Replace EMAIL with your email address.

curl https://get.acme.sh | sh -s email=EMAIL && source ~/.bashrc

Create a folder for the certificates​

mkdir -p /opt/remnawave/nginx && cd /opt/remnawave/nginx

Issue a certificate​

Replace DOMAIN with the domain name you want to issue a certificate for.

warning

Do not use domain zones: .ru, .su, .Ρ€Ρ„. Currently ZeroSSL does not support these zones.

acme.sh --issue --standalone -d 'DOMAIN' --key-file /opt/remnawave/nginx/privkey.key --fullchain-file /opt/remnawave/nginx/fullchain.pem --alpn --tlsport 8443
info

Make sure that port 8443 is open on your server. It is required for certificate issuance.

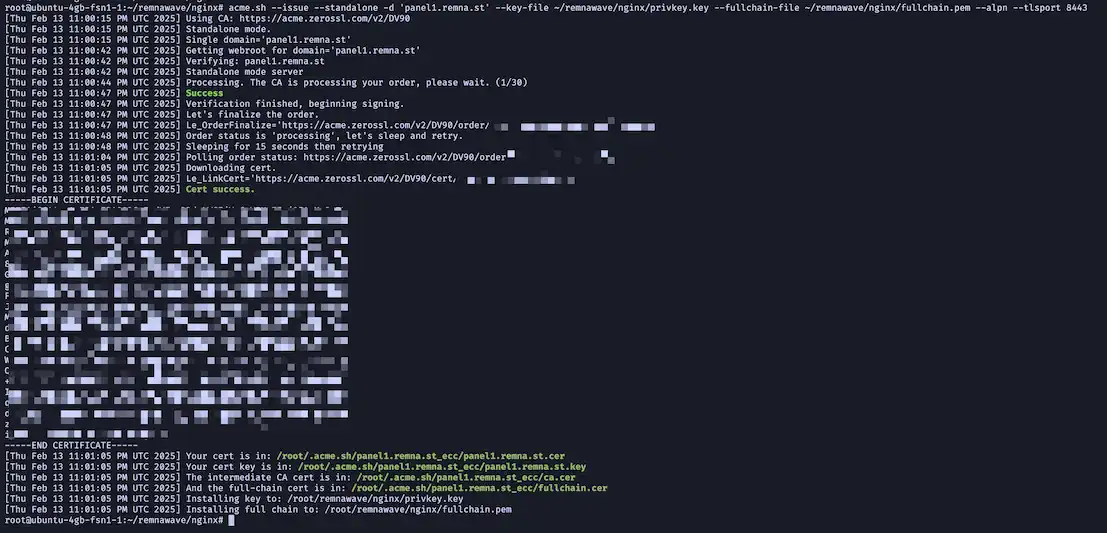

This shows that the certificate is issued. Acme.sh will take care of automatically renewing the certificate every 60 days, just make sure that you have a 8443 port open (and not busy) on your server.

Nginx configuration​

Simple configuration​

Create a file called nginx.conf in the /opt/remnawave/nginx directory.

cd /opt/remnawave/nginx && nano nginx.conf

Paste the following configuration.

warning

Please, replace REPLACE_WITH_YOUR_DOMAIN with your domain name.

Review the configuration below, look for red highlighted lines.

nginx.conf
upstream remnawave {
    server remnawave:3000;
}

server {
    server_name REPLACE_WITH_YOUR_DOMAIN;

    listen 443 ssl reuseport;
    listen [::]:443 ssl reuseport;
    http2 on;

    location / {
        proxy_http_version 1.1;
        proxy_pass http://remnawave;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    # SSL Configuration (Mozilla Intermediate Guidelines)
    ssl_protocols          TLSv1.2 TLSv1.3;
    ssl_ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:DHE-RSA-CHACHA20-POLY1305;

    ssl_session_timeout 1d;
    ssl_session_cache shared:MozSSL:10m;
    ssl_session_tickets    off;
    ssl_certificate "/etc/nginx/ssl/fullchain.pem";
    ssl_certificate_key "/etc/nginx/ssl/privkey.key";
    ssl_trusted_certificate "/etc/nginx/ssl/fullchain.pem";

    ssl_stapling           on;
    ssl_stapling_verify    on;
    resolver               1.1.1.1 1.0.0.1 8.8.8.8 8.8.4.4 208.67.222.222 208.67.220.220 valid=60s;
    resolver_timeout       2s;

    # Gzip Compression
    gzip on;
    gzip_vary on;
    gzip_proxied any;
    gzip_comp_level 6;
    gzip_buffers 16 8k;
    gzip_http_version 1.1;
    gzip_min_length 256;
    gzip_types
        application/atom+xml
        application/geo+json
        application/javascript
        application/x-javascript
        application/json
        application/ld+json
        application/manifest+json
        application/rdf+xml
        application/rss+xml
        application/xhtml+xml
        application/xml
        font/eot
        font/otf
        font/ttf
        image/svg+xml
        text/css
        text/javascript
        text/plain
        text/xml;
}

server {
    listen 443 ssl default_server;
    listen [::]:443 ssl default_server;
    server_name _;

    ssl_reject_handshake on;
}

Create docker-compose.yml​

Create a docker-compose.yml file in the /opt/remnawave/nginx directory.

cd /opt/remnawave/nginx && nano docker-compose.yml

Paste the following configuration.

docker-compose.yml
services:
    remnawave-nginx:
        image: nginx:1.28
        container_name: remnawave-nginx
        hostname: remnawave-nginx
        volumes:
            - ./nginx.conf:/etc/nginx/conf.d/default.conf:ro
            - ./fullchain.pem:/etc/nginx/ssl/fullchain.pem:ro
            - ./privkey.key:/etc/nginx/ssl/privkey.key:ro
        restart: always
        ports:
            - '0.0.0.0:443:443'
        networks:
            - remnawave-network

networks:
    remnawave-network:
        name: remnawave-network
        driver: bridge
        external: true

Start the container​

docker compose up -d && docker compose logs -f -t

Open the panel in the browser​

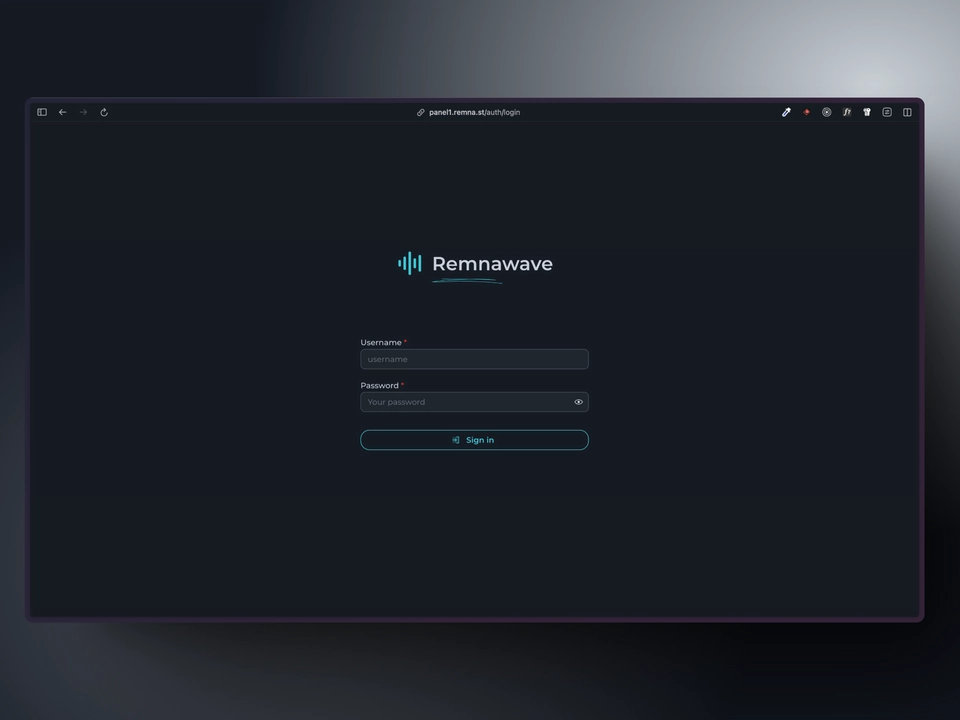

Open the configured domain name in the browser and you will see the login page.

login-page
