Caddy with minimal setup

Caddy is a powerful and flexible web server that can be used to secure your Remnawave panel.

Installation​

First of all, create a directory for Caddy.

mkdir -p /opt/remnawave/caddy && cd /opt/remnawave/caddy

And create a docker-compose.yml file.

touch docker-compose.yml && nano docker-compose.yml

And add the following content to the file:

docker-compose.yml
services:
    remnawave-caddy:
        image: remnawave/caddy-with-auth:latest
        container_name: 'remnawave-caddy'
        hostname: remnawave-caddy
        restart: always
        environment:
            - AUTH_TOKEN_LIFETIME=3600
            - REMNAWAVE_PANEL_DOMAIN=PANEL_DOMAIN
            - AUTHP_ADMIN_USER=LOGIN_USERNAME
            - AUTHP_ADMIN_EMAIL=LOGIN_EMAIL
            - AUTHP_ADMIN_SECRET=LOGIN_PASSWORD

        ports:
            - '0.0.0.0:443:443'
        networks:
            - remnawave-network
        volumes:
            - ./Caddyfile:/etc/caddy/Caddyfile
            - remnawave-caddy-ssl-data:/data

networks:
    remnawave-network:
        name: remnawave-network
        driver: bridge
        external: true

volumes:
    remnawave-caddy-ssl-data:
        driver: local
        external: false
        name: remnawave-caddy-ssl-data

Configuring .env variables​

You need to set a domain name for your Remnawave panel. Caddy will automatically issue a certificate for this domain.

REMNAWAVE_PANEL_DOMAIN=panel.domain.com

Admin credentials. Make sure to use a strong password.

AUTHP_ADMIN_USER=admin
AUTHP_ADMIN_EMAIL=admin@domain.com
AUTHP_ADMIN_SECRET=strong_password

Token lifetime.

AUTH_TOKEN_LIFETIME=3600

Caddyfile​

Lets deep dive into the Caddyfile.

First of all, you need to select one of our predefined setups.

Full security setup with MFA​

  • All routes are protected by authentication. (Frontend, Backend)
  • All API-endpoints are protected, includes /api/sub/* endpoints.
  • Login requires MFA with OTP-codes.
  • Special API-keys can be issued for /api/* endpoints.
  • Full domain protection.

Run the command below to download the Caddyfile.

curl -o Caddyfile https://raw.githubusercontent.com/remnawave/caddy-with-auth/refs/heads/main/examples/minimal-security-setup-with-mfa/Caddyfile

API routes without auth (api/*)​

  • Routes are protected by authentication. (Frontend)
  • Login requires MFA with OTP-codes. (Frontend)
  • All API-endpoints are not protected! (/api/* is public)
danger

This setup exposes the /api/* endpoints to the public internet.

All endpoints will not require authentication, but will still use the Remnawave security features.

We recommend using full security setup with MFA for production environments where you will be issuing API-keys.

Run the command below to download the Caddyfile.

curl -o Caddyfile https://raw.githubusercontent.com/remnawave/caddy-with-auth/refs/heads/main/examples/minimal-security-setup-with-mfa-with-api-without-auth/Caddyfile

/api/sub/* endpoints without auth​

  • Routes are protected by authentication. (Frontend)
  • Login requires MFA with OTP-codes. (Frontend)
  • Only /api/sub/* endpoints is public, other endpoints are protected.
danger

This setup exposes the /api/sub/* endpoints to the public internet.

We recommend using full security setup with MFA for production environments where you will be issuing API-keys and using @remnawave/subscription-page for public subscription page.

Run the command below to download the Caddyfile.

curl -o Caddyfile https://raw.githubusercontent.com/remnawave/caddy-with-auth/refs/heads/main/examples/minimal-security-setup-with-mfa-with-api-without-auth/Caddyfile

Running the container​

After you selected one of the setups above, you can start the container with the following command.

docker compose up -d && docker compose logs -f

Accessing the panel​

After the container is running, you can access the panel at https://panel.domain.com.

After that, you will be redirected to the login page of Caddy Auth.

On the first start, you will be prompted to create a MFA method.

We recommend using Google Authenticator for this.

Disable MFA​

If you want to completly disable MFA, you can do this by editing the Caddyfile.

Open the Caddyfile and change the following line:

cd /opt/remnawave/caddy && nano Caddyfile

Find the following lines, and remove the require mfa line.

Caddyfile
transform user {
	match origin local
	action add role authp/admin
	require mfa
}

After that, you can restart the container with the following command.

docker compose down && docker compose up -d && docker compose logs -f

Accessing Auth Portal page​

info

You can access the Auth Portal page at https://<your-domain>/r.

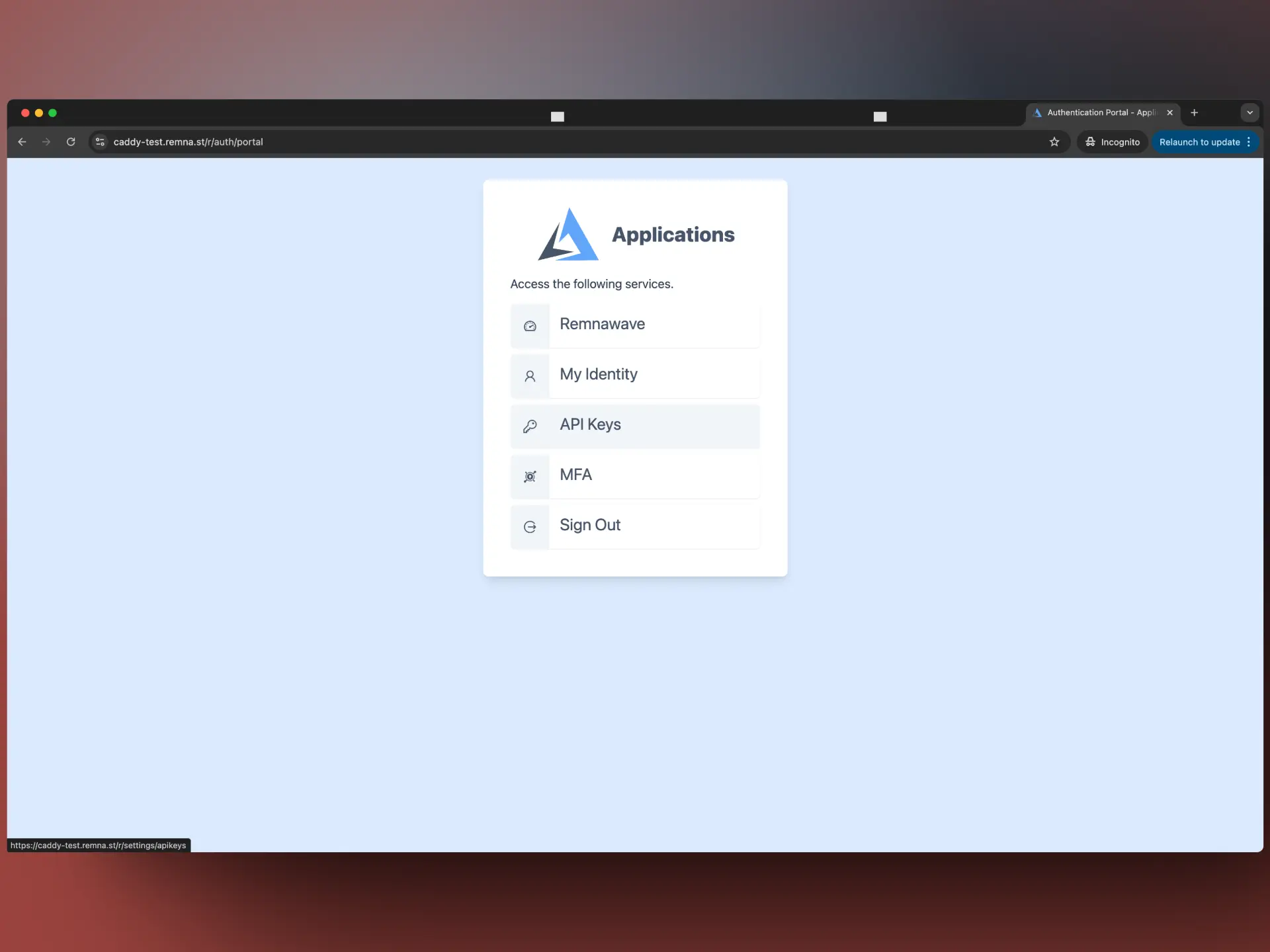

Auth Portal page

Here you can quickly go to Remnawave dashboard or manage some of Auth Portal settings.

In the MFA section, you can delete or add new MFA devices.

Issuing API-keys​

info

You can access the Auth Portal page at https://<your-domain>/r.

On the Auth Portal page, you can issue API-keys, click on the API-keys tab.

info

After you issue an API-key, you can use it in the X-Api-Key header of your requests to the API.

Example: X-Api-Key: YxOovHLnpkcmSig5082egcHnyTk8SK4dNGAFHgZ2LKZezgj5oUj2FA2IR2sMwbALnP9YNpzZ

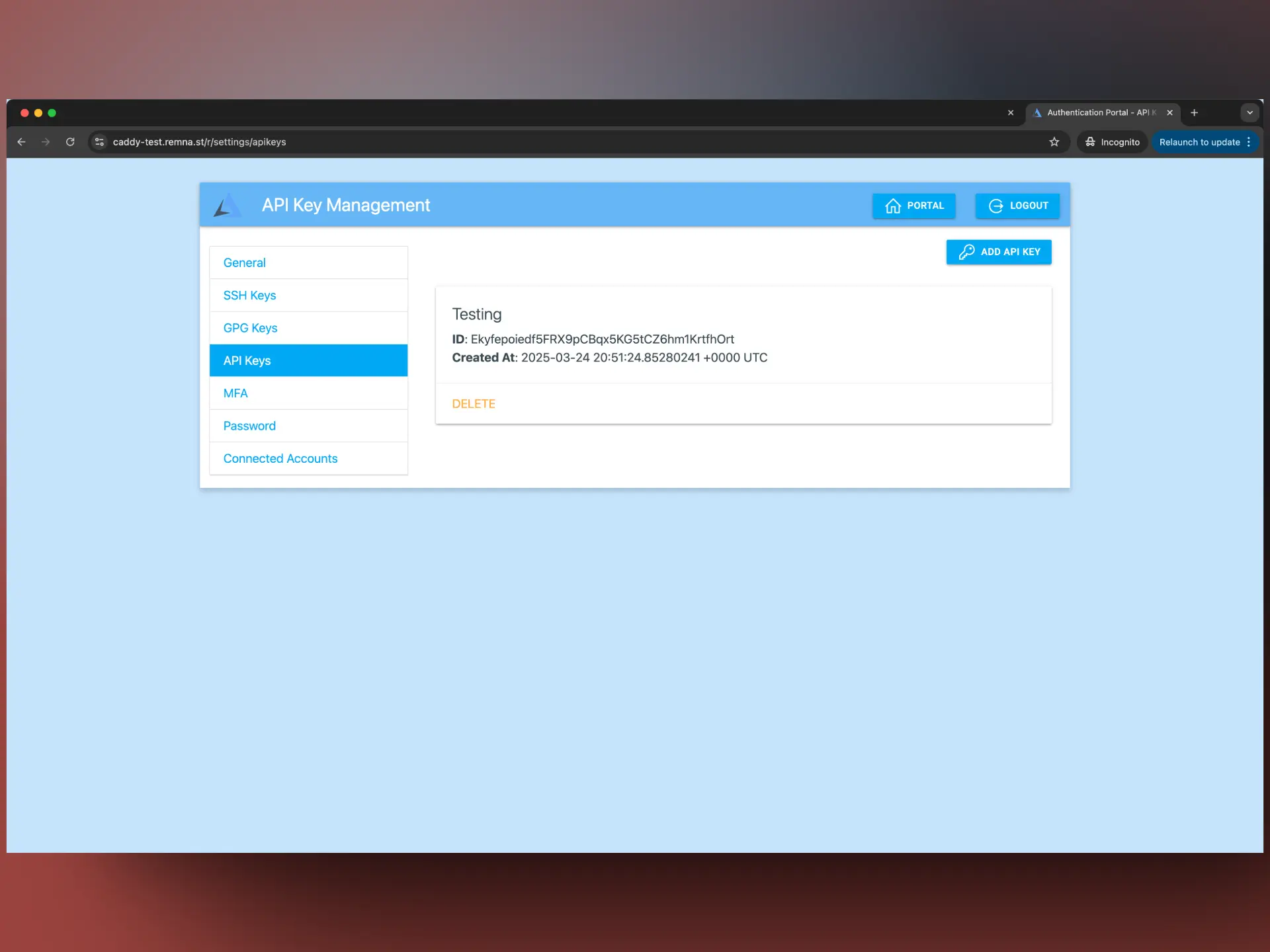

API-keys
